UNITED STATES STEEL CORP

Tool Mounting by GLICK

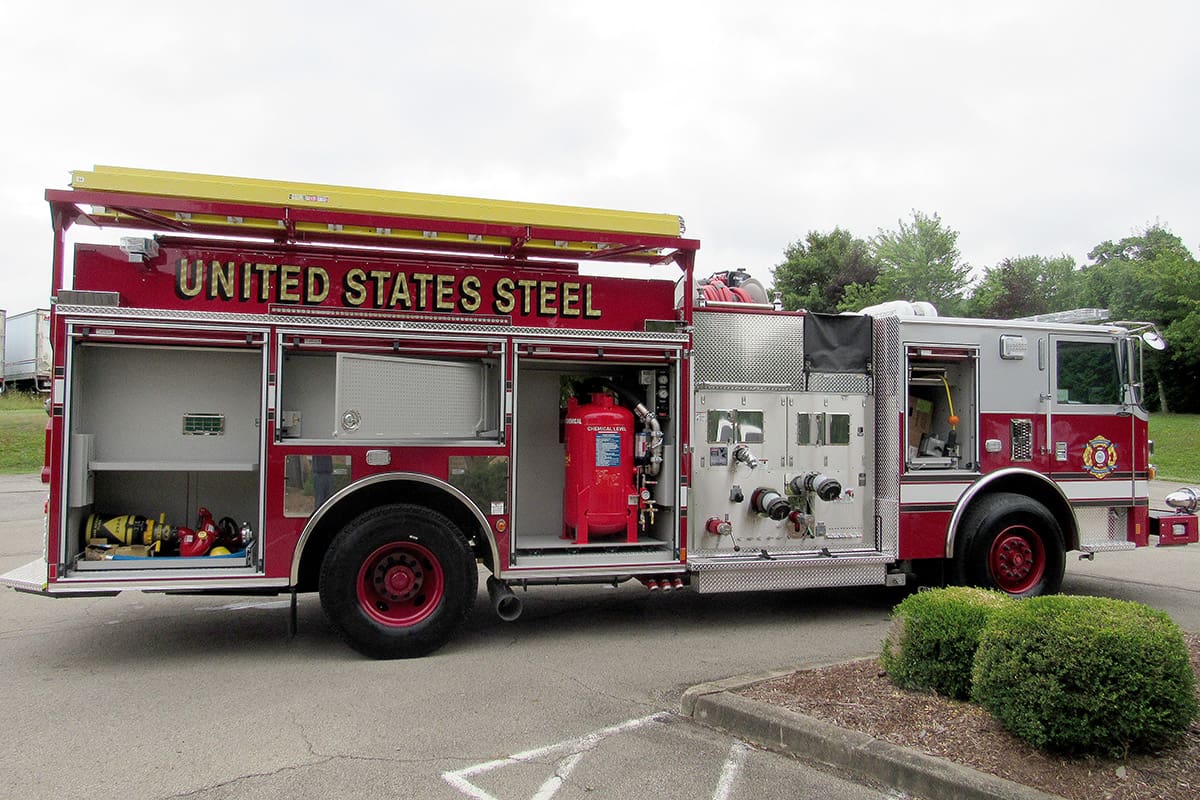

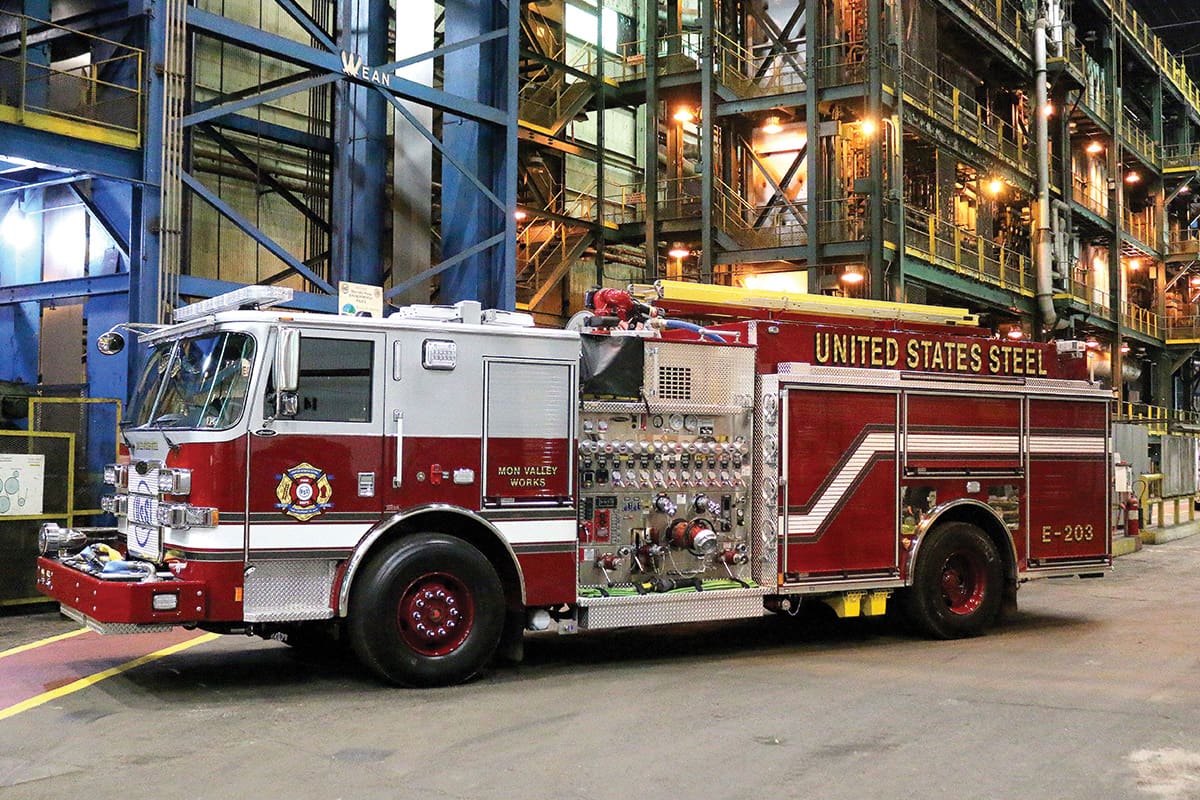

Year/Make/Model: 2024 Pierce Arrow XT

Type of truck: Industrial Foam Pumper

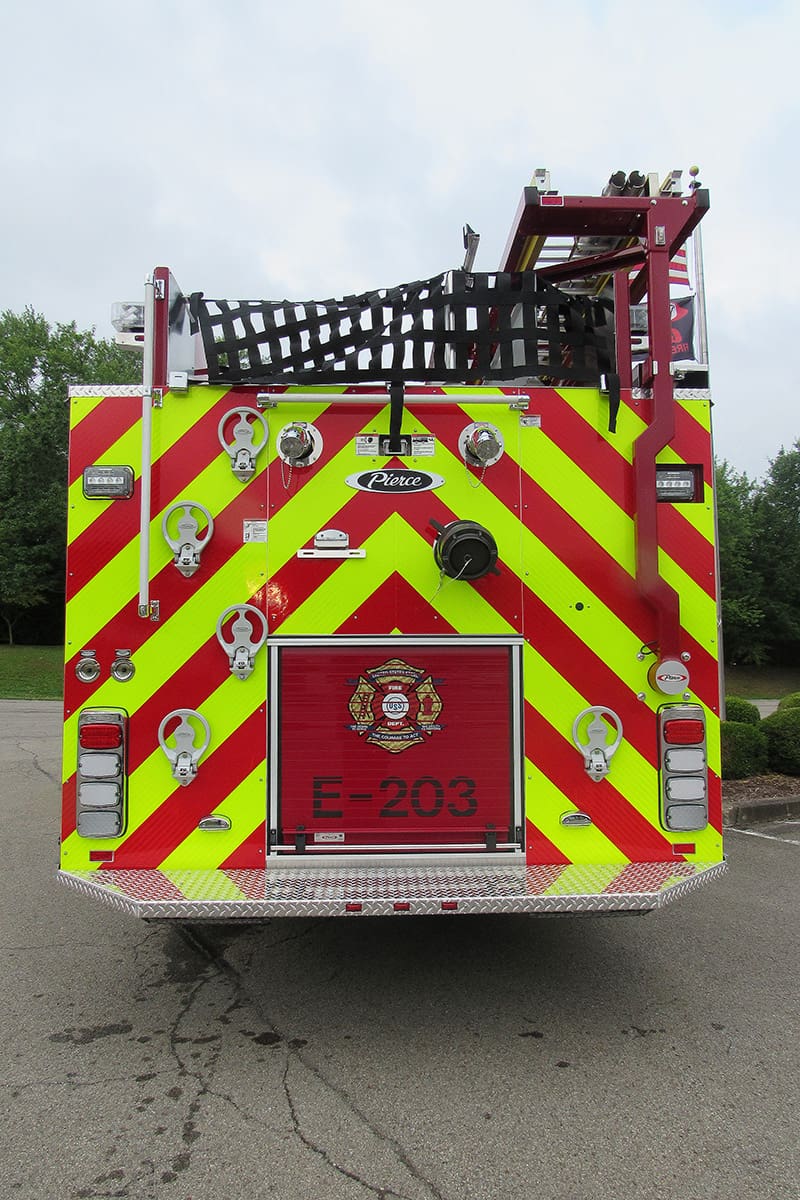

Designation: E-203

Engine: Cummins X12, 525 hp

Transmission: Allison 4000EVS



Pump: Hale QMAX-225 2,250 GPM pump

Water tank size: 500-gallon water tank

Foam system:  Husky 90 Industrial

Foam cell:  1,000-gallons Class B

and 500 lb. Dry chemical system

Generator:  Harrison 6kW MSV 120/240V, Hydraulic



Wheelbase: 207.00”

Overall Height: 153.00” (12’ 9.00”)

Overall Length: 400.25” (33’ 4.25”)

Seating Capacity: 2



Additional details:

• Williams Monitor and Hydro Dual Agent booster reel – both capable
• of discharging water, foam, and dry chemical
• 4.00″ Deluge outlet
• Akron Remote Control Deck Gun with a Williams Hydro-Chemical Nozzle
• Hydro Dual Agent Booster Reel
• Will-Burt Night Scan light tower
• 22-inch extended steel bumper
• Hydraulic ladder rack
• Frontal Impact Protection
• TAK-4 Independent Front Suspension
• Whelen emergency lighting
• HiViz scene lighting
• TecNiq permimeter lighting
• Gortite roll-up doors
