PAOLI FIRE COMPANY

Tool Mounting by GLICK

Graphics by GLICK

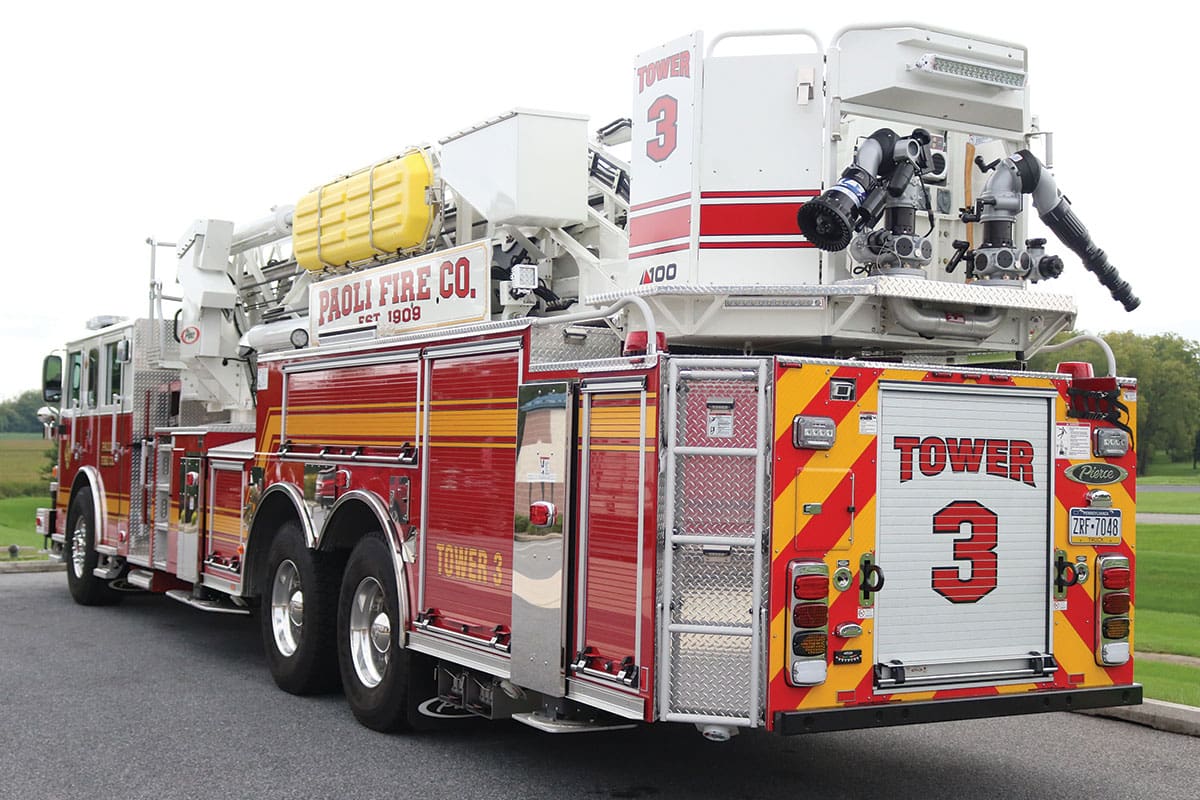

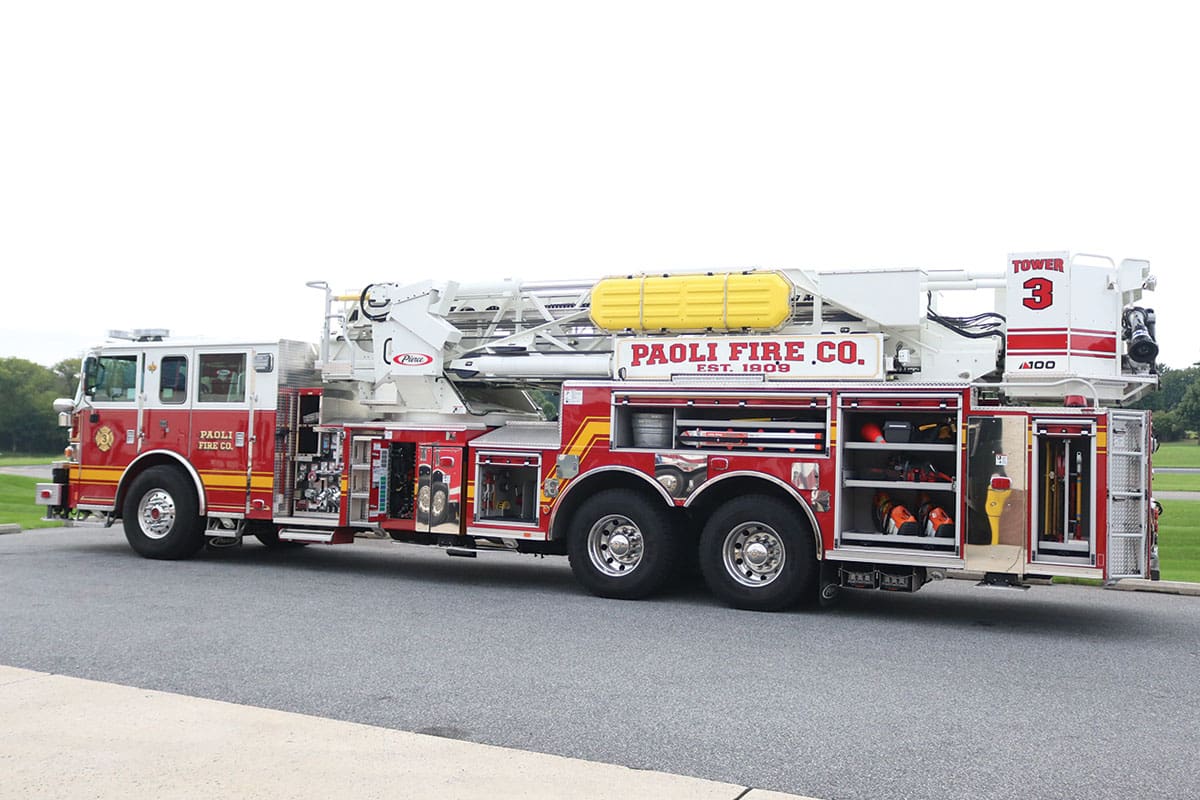

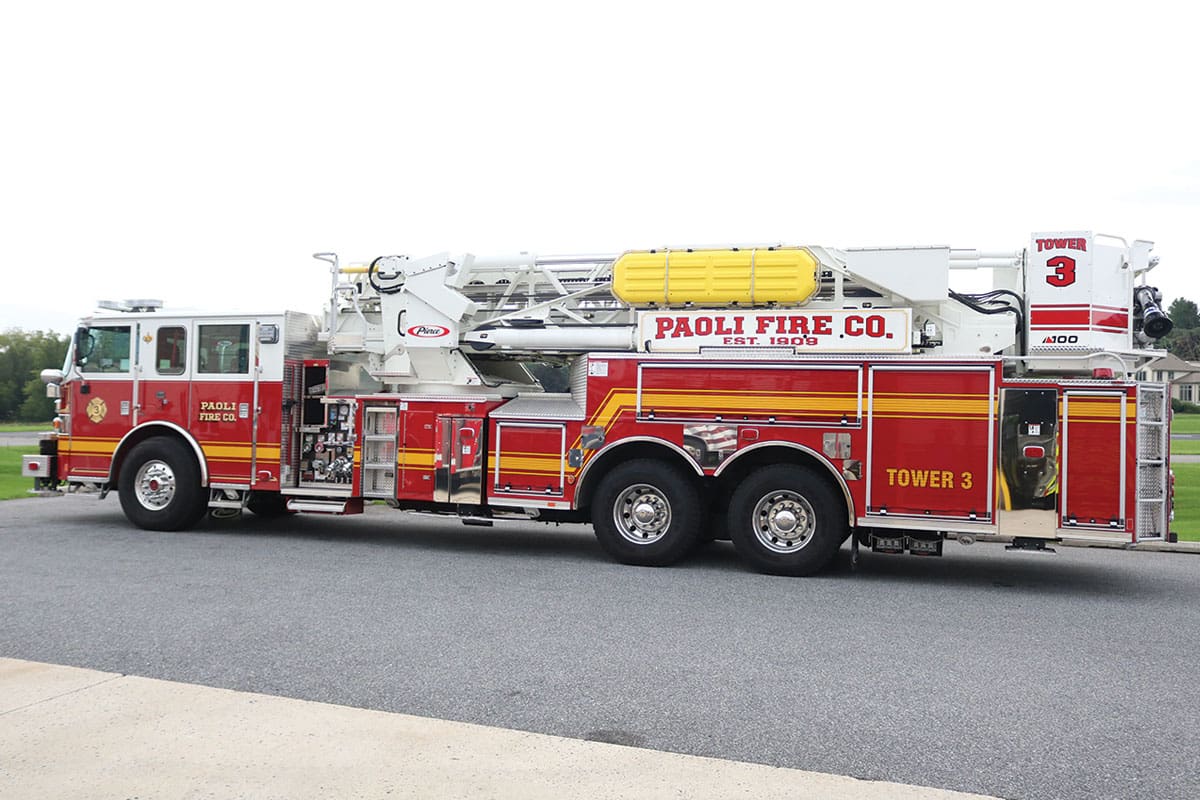

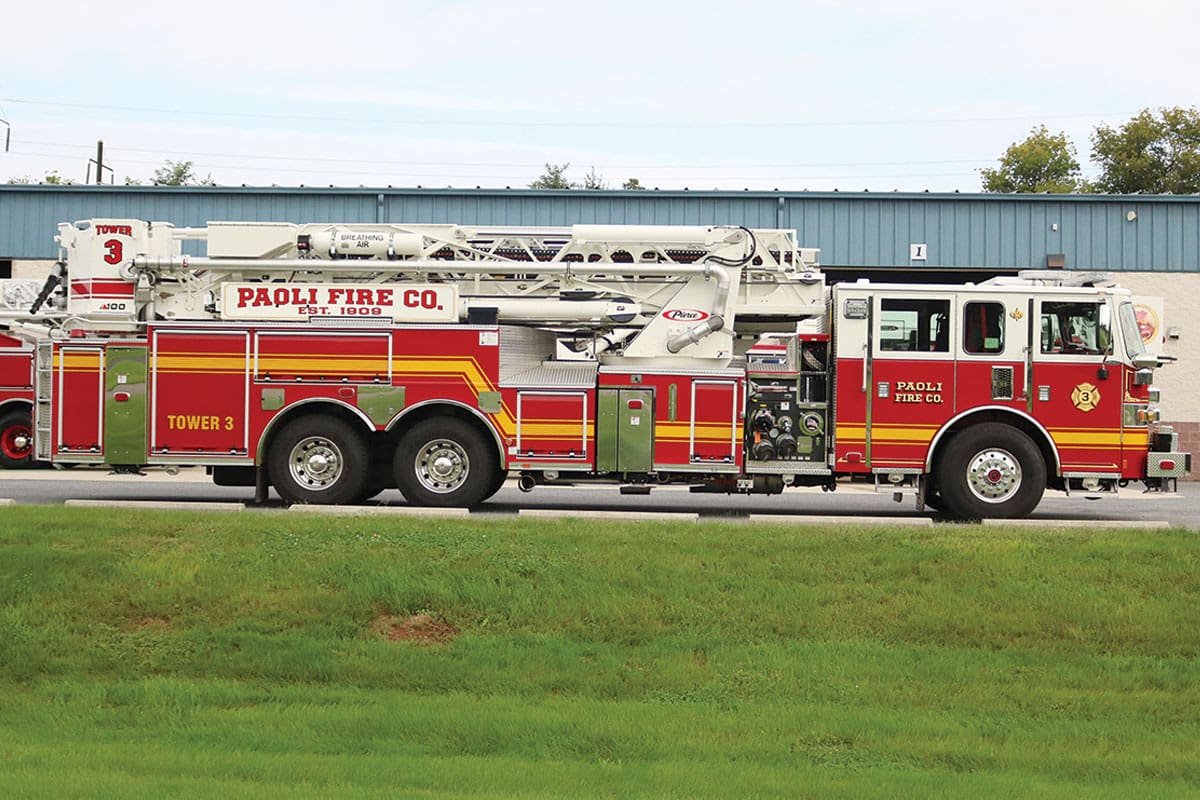

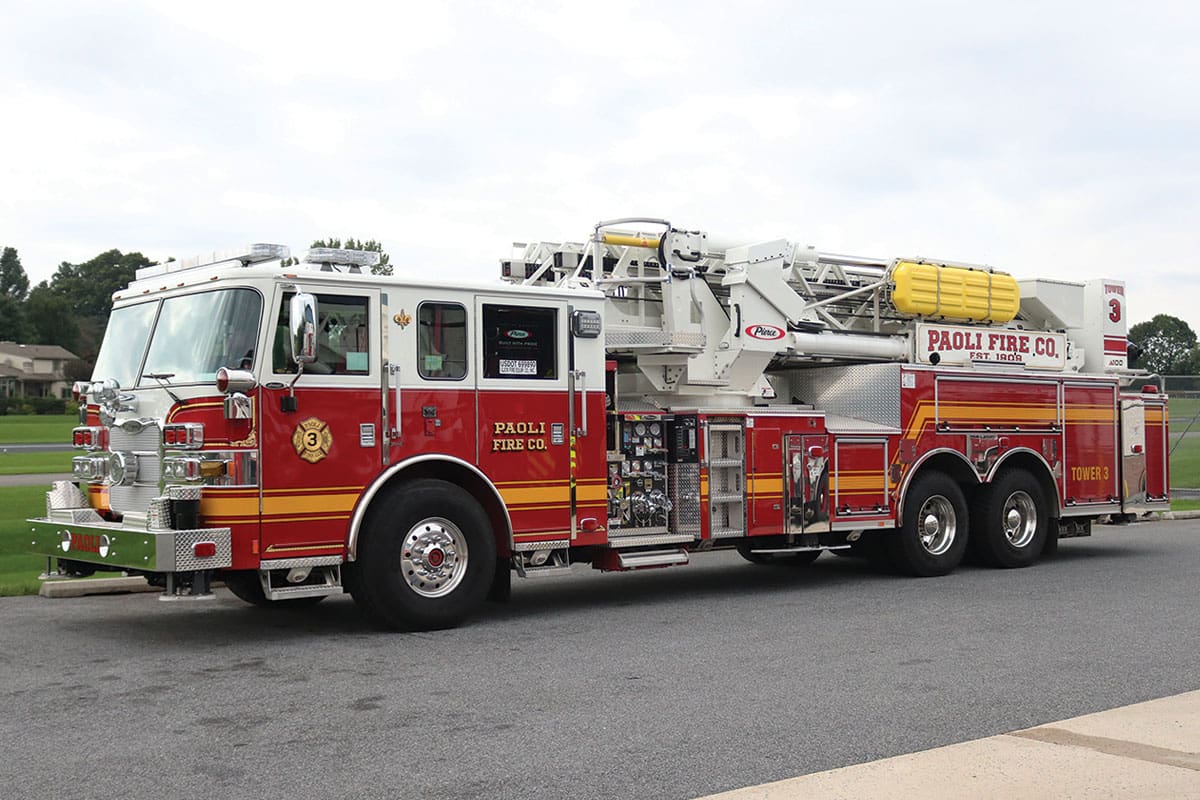

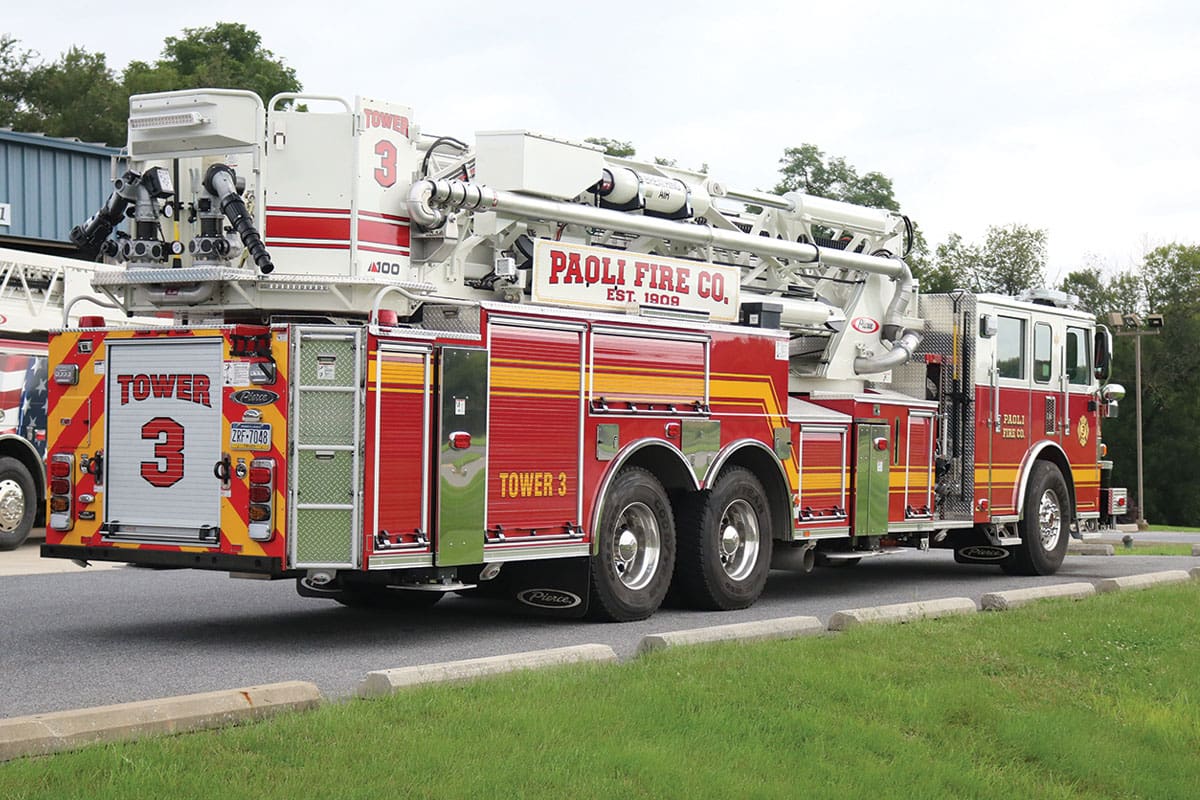

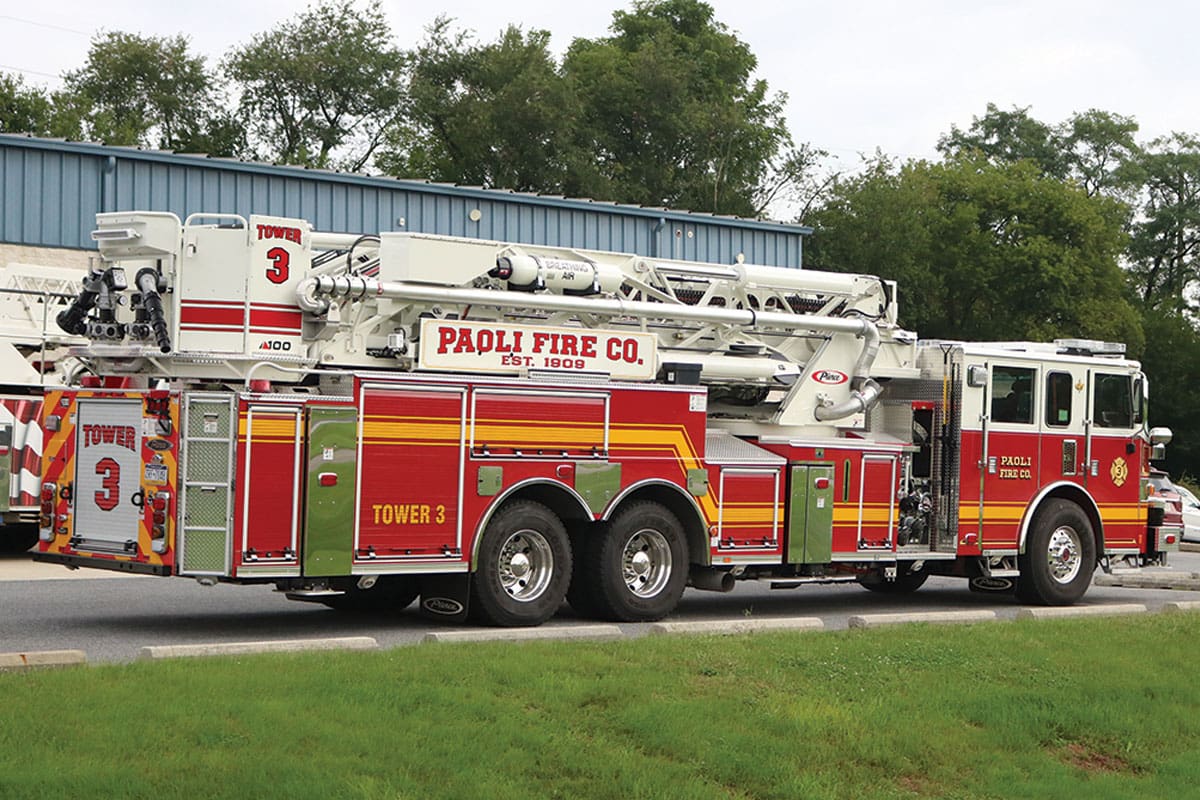

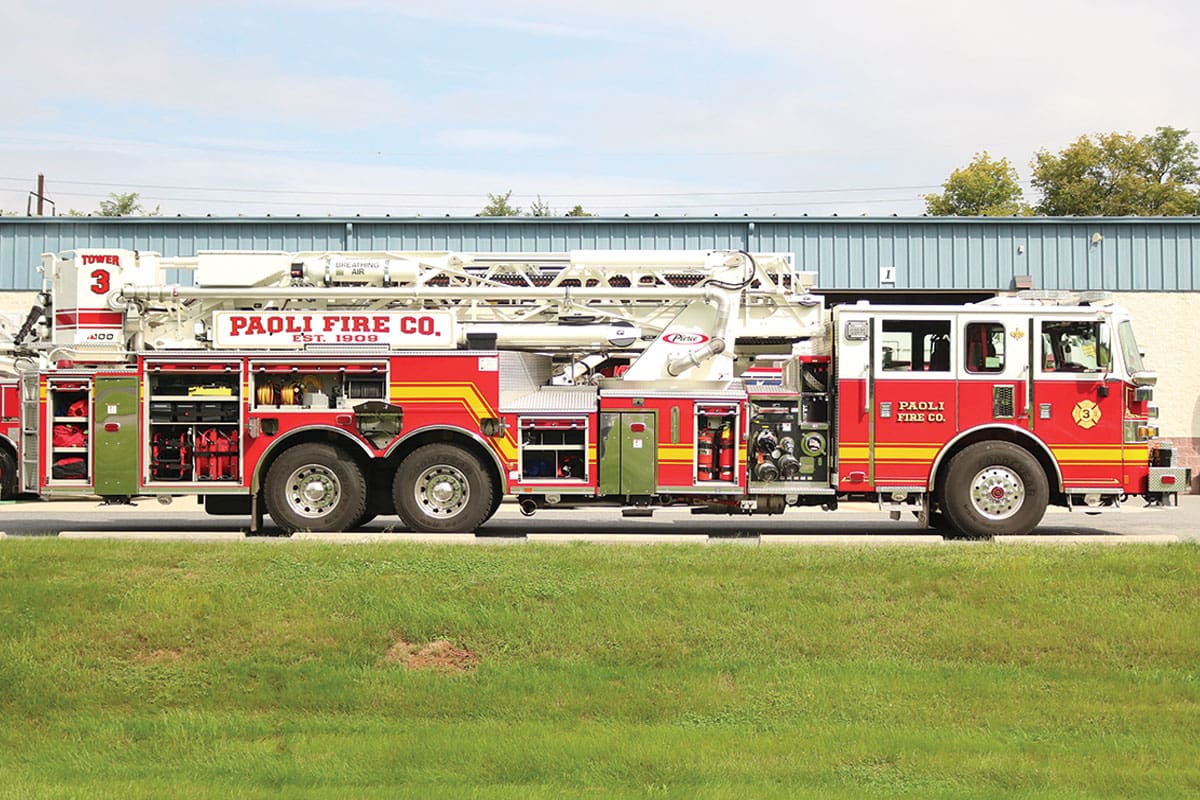

Year/Make/Model: 2020 Pierce® Arrow XT™

Type of truck: 100’ Ascendant® Heavy-Duty Aerial Tower

Designation: Ladder 3??

Engine: Cummins X15 600 hp engine

Transmission: Allison 4500EVS



Water tank size: 300-gallon water tank

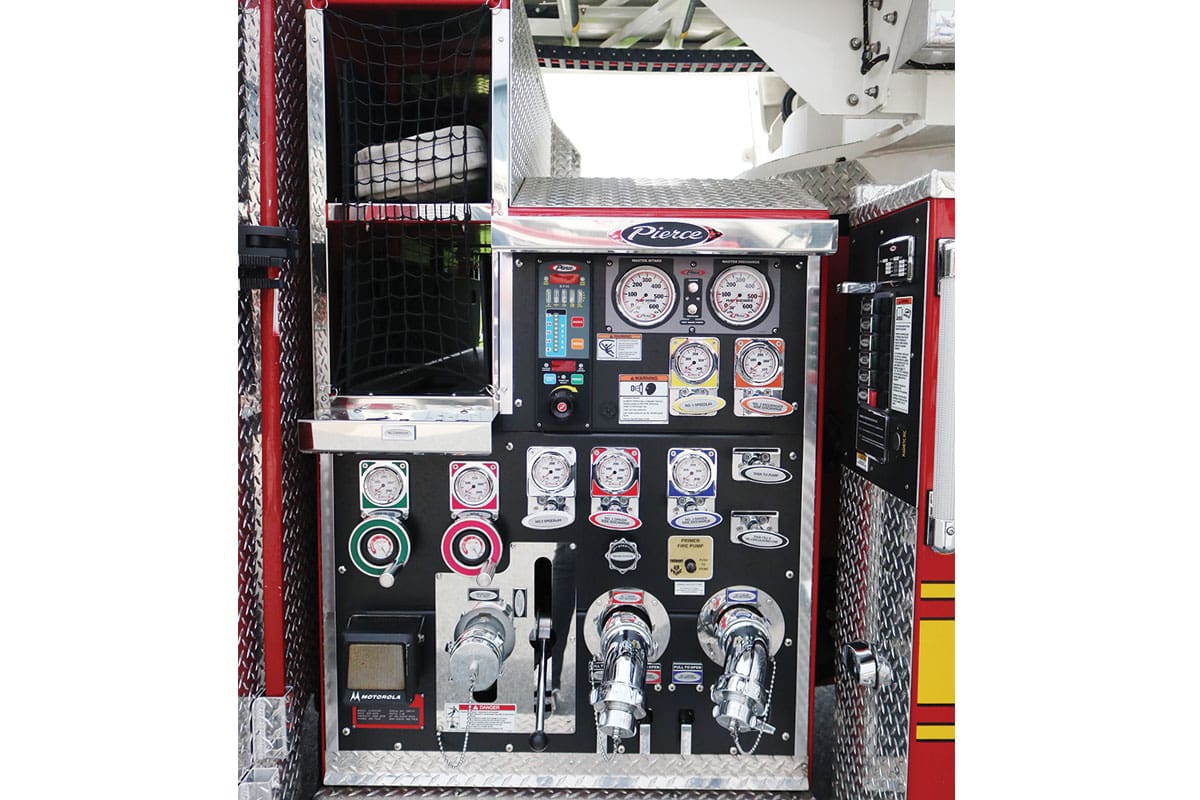

Pump: Waterous S100 2,000 GPM pump

Generator:  10kW Harrison hydraulic generator



Overall Height: 131.00” (10’ 11”)

Overall Length: 505.75” (42’ 1.75”)

Wheelbase: 262.00″

Seating Capacity: 8



Additional details:

• Two (2) 1.50” crosslays for 200’ of 1.75” Hose
• Hosebed for 800’ of 5.00” Hose

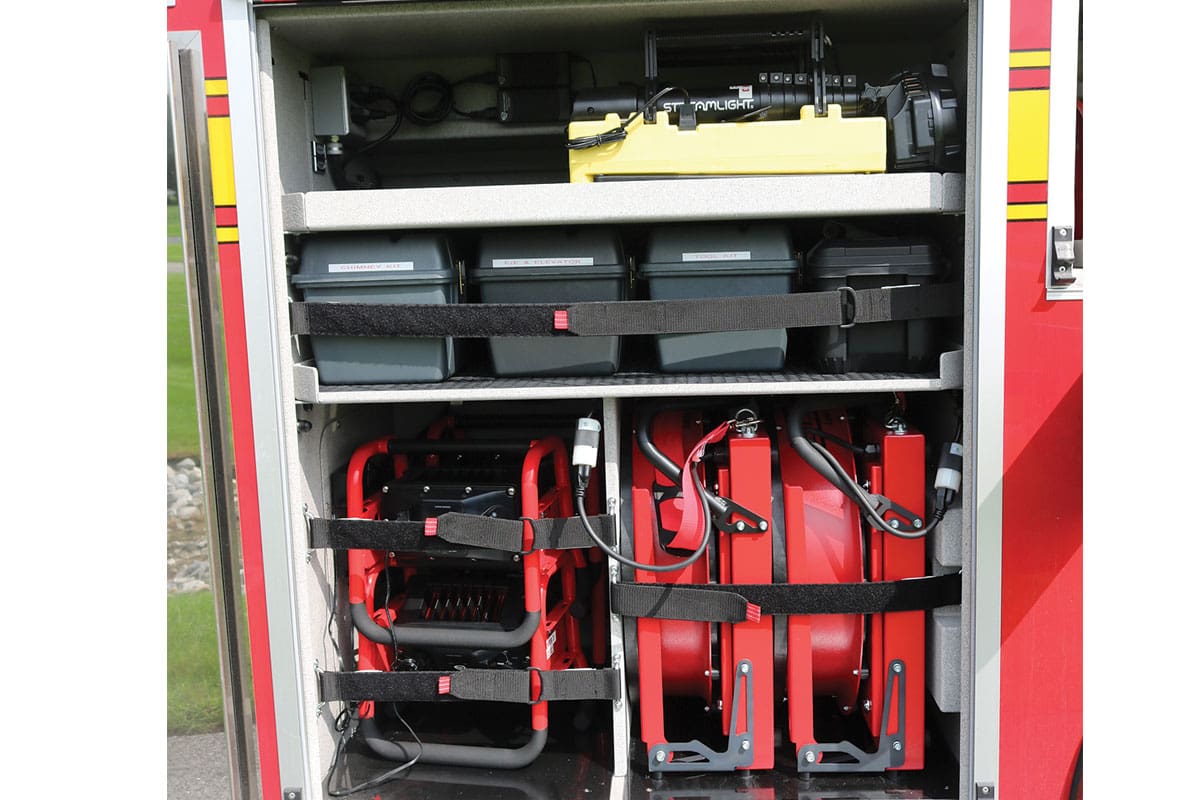

• Two (2) cord reels with 200’ of 10/3 cable
• 15-inch polished stainless-steel bumper
• Side Roll Protection and Frontal Air Bags
• TAK-4 Independent front suspension
• 1000 lb. basket load
• Five (5) section steel ladder
• Collision avoidance
• Stabilizer placement cameras

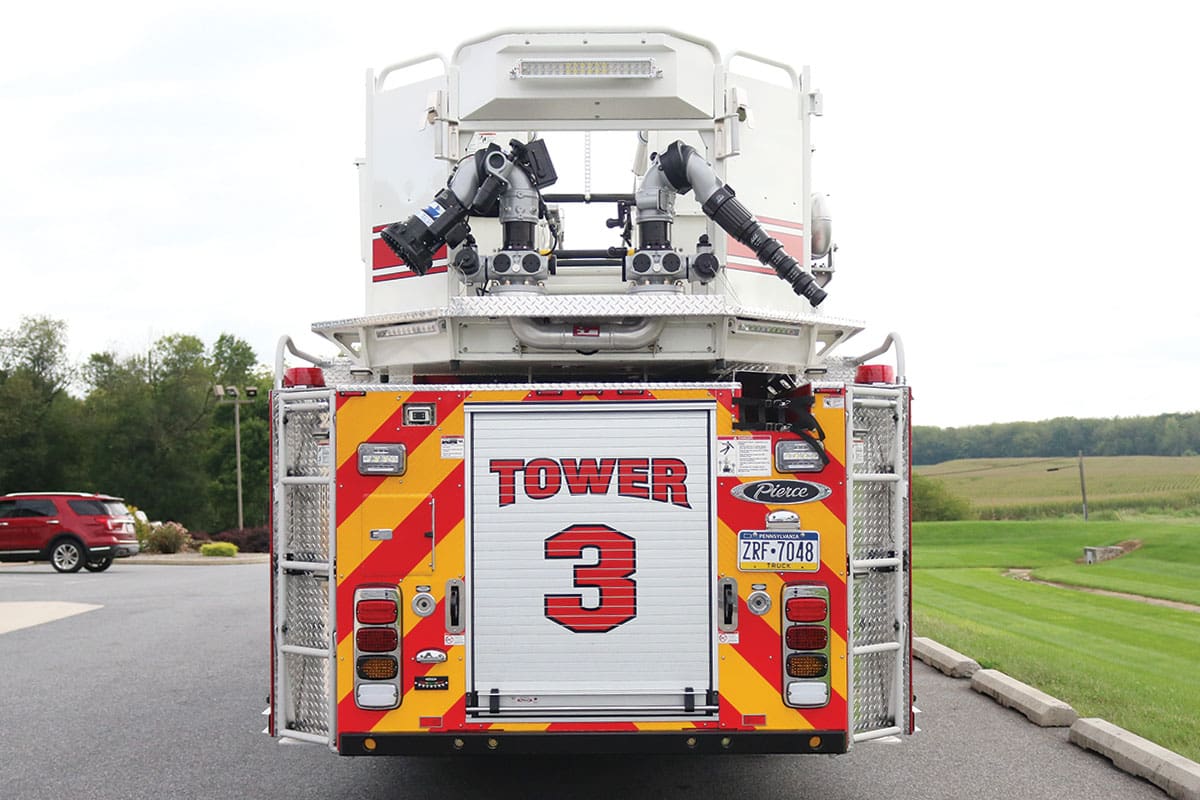

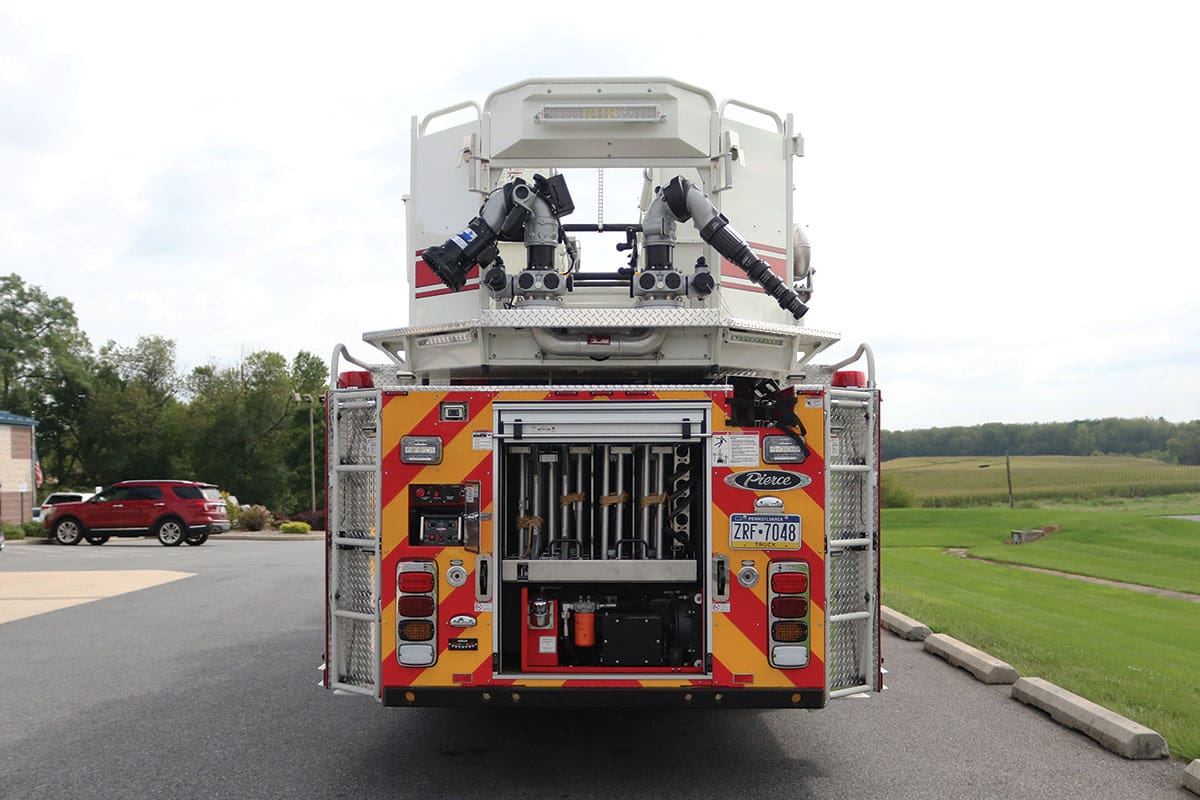

• 2,000 GPM waterway with two (2) TFT Y4 monitors
• 14’ Duo-Safety 875-A-DR on fly section
• Blue aerial rung lighting
• Whelen® LED warning lights
• HiViz scene lighting
