Tool Mounting by GLICK
Year/Make/Model: 2016 Pierce® Arrow XT™
Type of truck: Heavy duty non-walk-in rescue
Designation: Rescue 49
Engine: Cummins® ISL9 450 hp engine with Jake brake
Transmission: Allison® 4000EVS P transmission

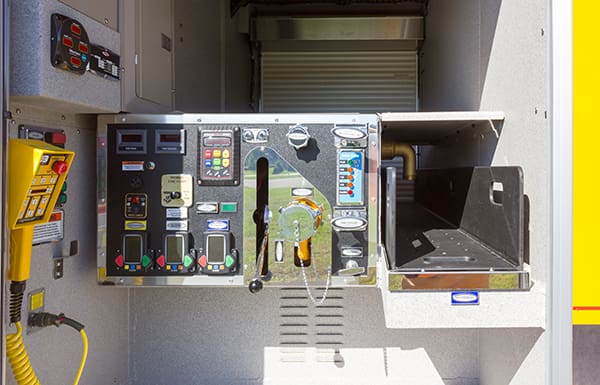

Pump: Hale® AP50 500 gpm single-stage pump
Water tank size: 300 gallon poly water tank
Overall Height: 10’ 6” (approx.)
Overall Length: 35’ 9.25” (approx.)
Overall Width: 96” (approx.)
Seating: Seating for six (6) firefighters
Additional details:
- 67” cab with 20” raised roof
- 16” extended front bumper with two (2) tool bins and one (1) trash line
- Front impact and Side Roll Protection system
- Interior EMS compartments
- 21.5’ aluminum non-walk-in heavy duty rescue body
- Winch receivers on all sides for Warn 9,000lb portable winch
- Air conditioning
- ROM™ roll-up compartment doors
- One (1) 1.75” x 200’ speedlay
- All plumbing stainless steel
- Whelen® 12 volt LED scene lighting on all sides
- Whelen® LED warning light package
- Q2B siren
- Harrison 30kW hotshift PTO generator
- Alcoa aluminum wheels
- NFPA chevron striping
- Custom tool mounting by Glick Fire Equipment
